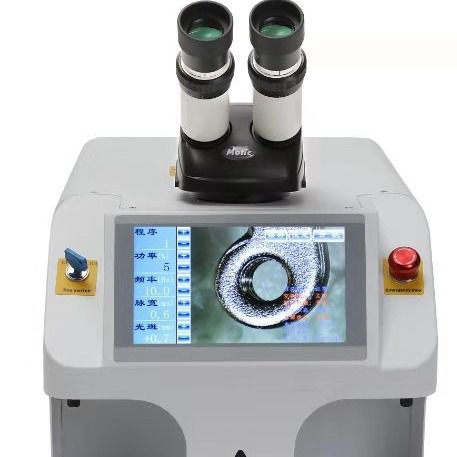

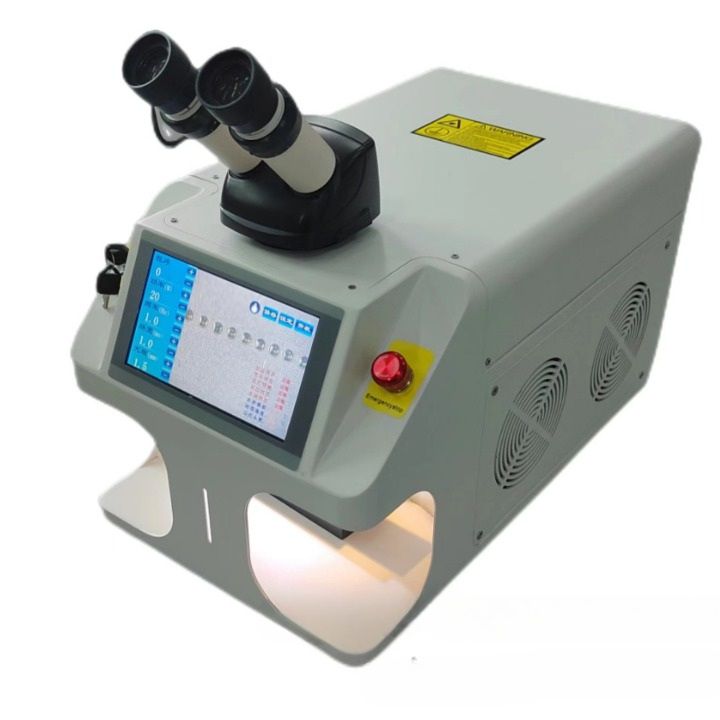

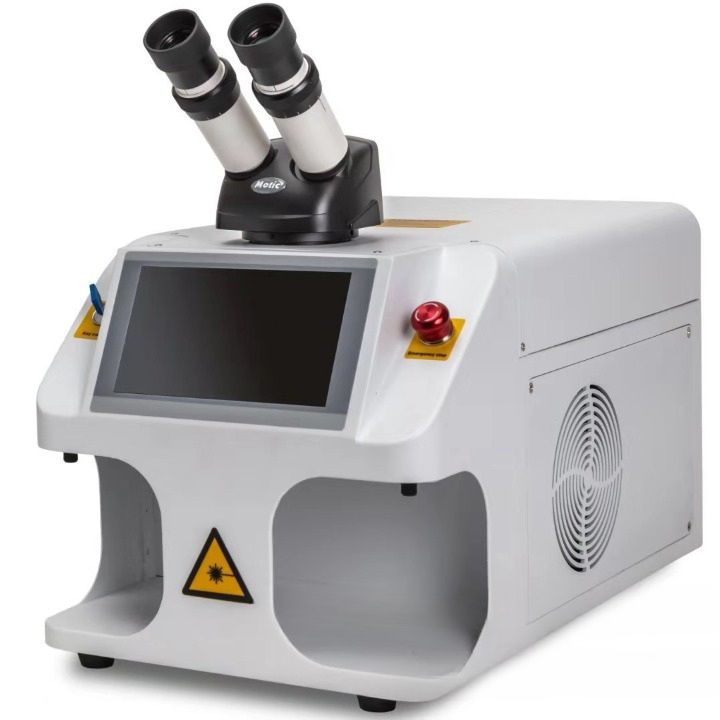

Tabletop welding machine for laser spot soldering and welding for glasses and jewelry YXS-W200, laser - 100 W / 150 W / 200 W
YXS-W200-2
Похожие товары
( 0)
¥ 23 000.00
Description
- Welding type: laser spot welding
- Focal spot diameter: 0.1 ~ 2.2 mm
- Laser welding depth: 0.1 ~ 1 mm
- Collimation focal length: 60
- Focal length: 70
- Laser wavelength: 1064 nm
- Maximum laser power: 100 W / 200 W (choose)
- Maximum average power: 180 W
- Cooling: water built-in
- Parts for transportation: there are no batteries or liquids inside the device!
- Product size: 510 * 295 * 435 mm
- Package size: 700 * 370 * 450 mm
- Weight: 35 kg
- Weight with wooden packaging: 43 kg
- Power: 60 ~ 200W
- Power: 220 V±10% / 50 Hz
- Quality: 1st class, European conformity
One user's comment: Well, look, we bought one for the exhibition to take. A good thing. But it is designed for a small amount. So overall a good thing. It will do fine for the workshop .
According to consumables . Who works with what . There are special solders . Tin and acid are not needed .
We work with silver jewelry solder. We solder the glasses with silver. Any jeweler can do it.
Titanium is difficult to solder . You can also, for example, buy ready-made solders for titanium on the Internet. But we also solder with silver. We also need an argon tank to work with titanium. If soldered without argon, then titanium overheats and oxidizes and becomes brittle
In general, you need to select it for yourself later (it depends on the solder and the thickness of the welding material
Well, you need to negotiate with a jeweler on the spot, he will make a solder from silver. It's worth a penny.
There are such solders in China. 1.5 - 2.0 mm wire for soldering titanium.
