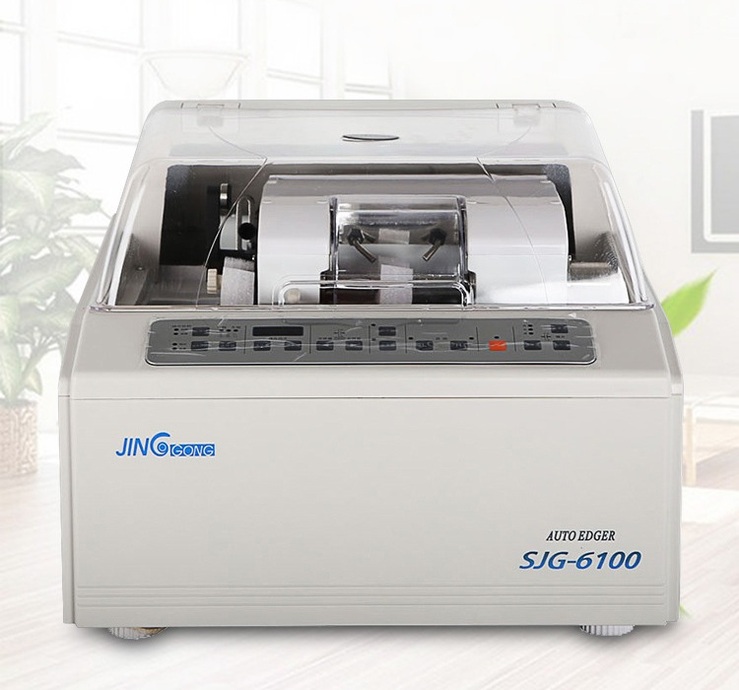

Automatic lens edger griding machine SJG-6100
Description:
- Application: turning and processing of all types of spectacle lenses in automatic mode
- Suitable lens materials: glass, CR plastic
- Wheel: combined diamond wheel with surfaces: CR rough grinding + GL rough grinding + polishing + fine grinding with V-groove, option for reverse rotation
- Allowed lens diameter: 22 ~ 80 mm
- Wheel diameter: 100 mm
- Wheel speed: 16.7 m/s
- Item size: 520 * 480 * 380 mm
- Machine packing size: 620 * 570 * 610 mm
- Pump package size: 440 * 340 * 300 mm
- Product weight: 44 kg
- Power: 400 VA
- Power supply: 220 V, 50 Hz
- Working temperature: 5 ℃ ~ 40 ℃
- Quality: grade 1, European Conformity
Описание
For specific works and for the lenses grinding, the edger will be useful for lens sharp edge removing. The edger has one combined wheel for rough and fine grinding and a grinding groove. The machine with one combined wheel is used for grinding of any types and materials of eyeglass lenses. High speed wheel rotation. Reverse rotation (optional).An updated model with an upper water supply mode and higher grinding accuracy. Four types of grinding surfaces are suitable for processing CR/GL lenses, the corresponding grinding wheel can be selected according to the lens material.
